When choosing a bifold door or window, overall size is only part of the decision.

You also need to consider how many panels the system has, which direction they move, and where the panels stack when the opening is fully open.

This is known as the panel configuration.

Understanding configurations before ordering can help you choose a system that works properly with your room, patio, countertop, furniture, and available space.



What Is a Bifold Panel Configuration?

A bifold door or window is made from multiple panels connected together.

As the system opens, the panels fold against one another and move toward one or both sides of the opening.

The panel configuration describes how those panels are arranged and where they stack.

For example, depending on the system, the panels may:

• Fold toward the left
• Fold toward the right
• Divide and fold toward both sides

Two bifold systems can therefore have the same overall width but operate differently because they use different panel configurations.

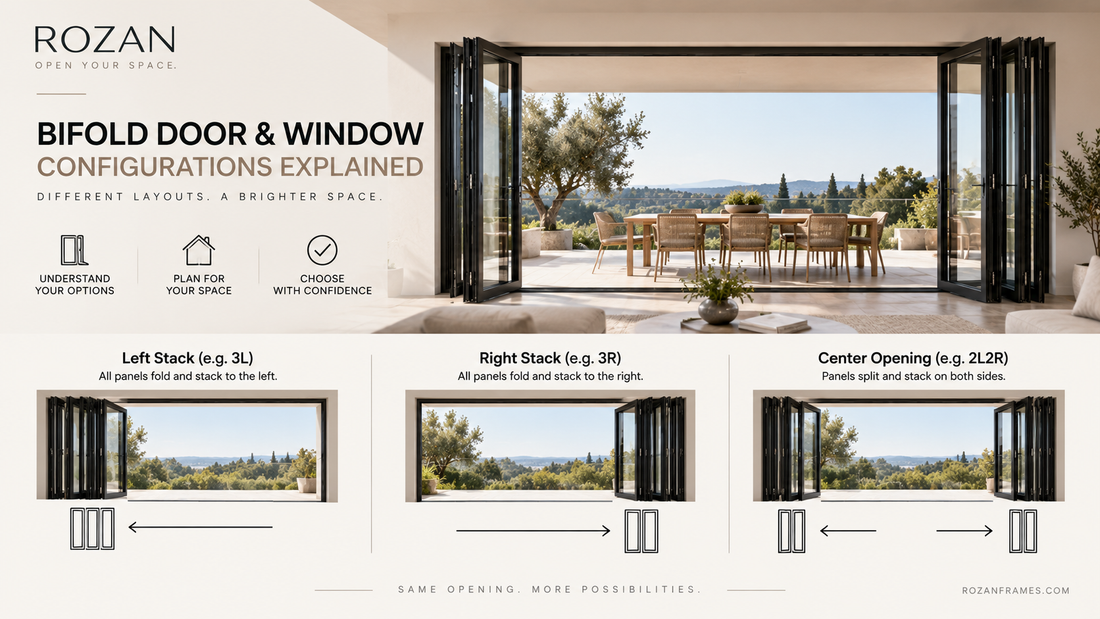

What Do L and R Mean?

When viewing bifold configurations, you may see abbreviations such as:

2L
2R
3L
3R

The number indicates the number of panels in that group.

The L or R identifies the side associated with that configuration.

For example:

3L = three-panel configuration associated with the left side

3R = three-panel configuration associated with the right side

However, left and right should always be interpreted according to the manufacturer's specified viewing/reference position.

Don't select a configuration simply because an illustration appears to open toward the direction you want. Confirm the orientation shown on the specific product before ordering.



What Is a Center-Opening Configuration?

Some wider bifold systems can divide the panels between both sides of the opening.

For example, a four-panel center configuration may have:

2 panels toward one side + 2 panels toward the other

This can be represented as:

2L + 2R

Instead of stacking the entire system at one end, the panels are distributed between both sides.

For larger architectural openings, this can create a more balanced layout and reduce the number of panels stacked at a single side.



Why Does Panel Count Change With Door or Window Width?

Panel width cannot simply increase indefinitely as the overall opening gets wider.

As a result, larger bifold systems generally require additional panels.

A smaller opening may work with two panels, while progressively wider openings may require three, four, five, six, or more panels depending on the system.

This is why you shouldn't choose the number of panels independently from the product size.

The available configurations are determined by the dimensions and engineering of the particular bifold system.



Where Will the Panels Go When the System Is Open?

This is one of the most important questions to answer before ordering.

Imagine the system completely open.

Where will the folded panels sit?

Consider nearby:

• Walls
• Furniture
• Kitchen cabinets
• Countertops
• Outdoor furniture
• Walkways
• Landscaping
• Railings
• Other doors and windows

The configuration that looks best on a drawing isn't necessarily the configuration that works best in the actual space.



Bifold Window Configurations Require the Same Planning

The same principle applies to bifold windows.

For example, a bifold window installed above a kitchen or outdoor bar should be evaluated based on where its folded panels will sit when open.

You don't want the panel stack interfering with cabinets, shelves, appliances, serving areas, or adjacent architectural features.

Think about the open position, not just how the window looks when closed.



One-Side Stack vs. Split Configuration

Neither configuration is automatically better.

One-Side Stack

All or most operating panels move toward one side.

This can make sense when one side of the opening has plenty of available space and you want to keep the opposite side relatively clear.

Split or Center Configuration

Panels are distributed between the two sides.

This can work well for wider openings where a large stack of panels at one end would be undesirable.

The right choice depends on the opening, available configurations, and surrounding space.



Configuration Is Different From Swing Direction

This distinction is important.

Panel configuration describes how the panels are grouped and where they stack.

Swing direction describes whether the system operates toward the interior or exterior.

These are related aspects of how a system operates, but they are not the same specification.

When selecting a bifold system, both need to be understood.



Don't Choose Configuration Based Only on Appearance

Customers naturally focus on how a bifold system looks when closed.

But the bigger question is:

How will you use the opening when the system is open?

A good configuration should make sense for everyday movement through the space as well as for fully opening the system.

Before ordering, visualize:

Closed → Partially Open → Fully Open

That simple exercise can prevent choosing a configuration that looks good on paper but doesn't work well in the actual space.



Before Selecting Your Configuration

Before ordering your bifold door or window, confirm:

• Overall opening dimensions
• Available product size
• Number of panels
• Available panel configurations
• Left/right orientation
• Where the panels will stack
• Available space around the opening
• Operating direction
• Any nearby obstructions

If you're unsure about sizing, start with our How to Measure for Bifold Doors & Windows guide.

If some of the terminology is unfamiliar, see our Bifold Door & Window Terminology Explained guide.



Choosing a ROZAN Bifold Configuration

ROZAN bifold doors and windows are offered in different sizes and configurations depending on the system.

Available configurations can change based on product dimensions, so review the options shown on the individual product page rather than assuming every configuration is available for every size.

If you're unsure which configuration works for your opening, contact ROZAN before ordering. We can help you review the available options for the product you're considering.
