ROZAN / DOORS & WINDOWS

144 in. x 80 in. Black Aluminum Bifold Patio Door

Extra 30% offAt checkout Skip to product information
1 of 7

ROZAN

144 in. x 80 in. Black Aluminum Bifold Patio Door

144 in. x 80 in. Black Aluminum Bifold Patio Door

Regular price $6,900.00
Regular price $8,050.00 Sale price $6,900.00
Sale Sold out Extra 30% off At checkout $4,830 Applied automatically. No code needed.Total savings: about 40% · $3,220
Shipping calculated at checkout.
Configuration

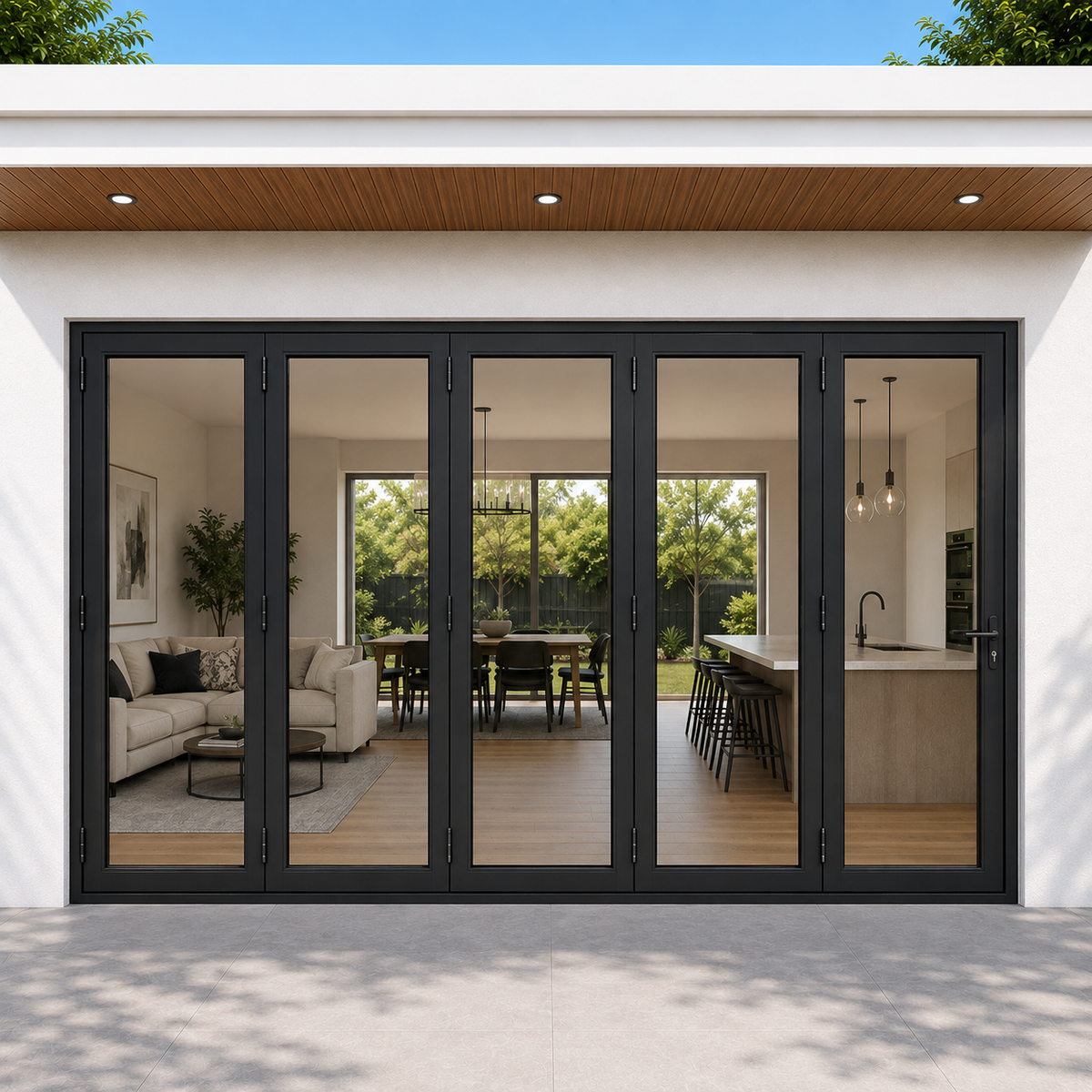

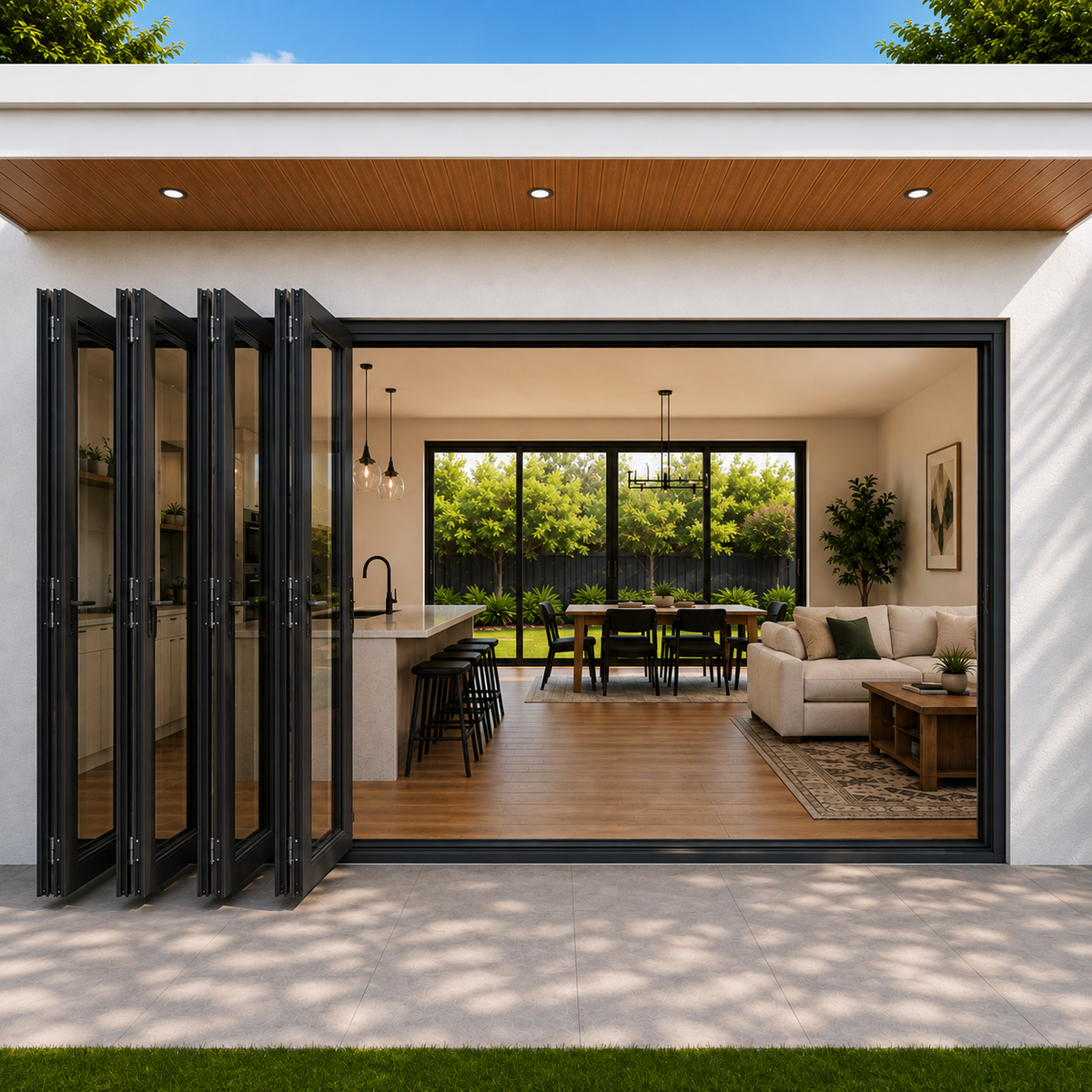

5 Panel – Left

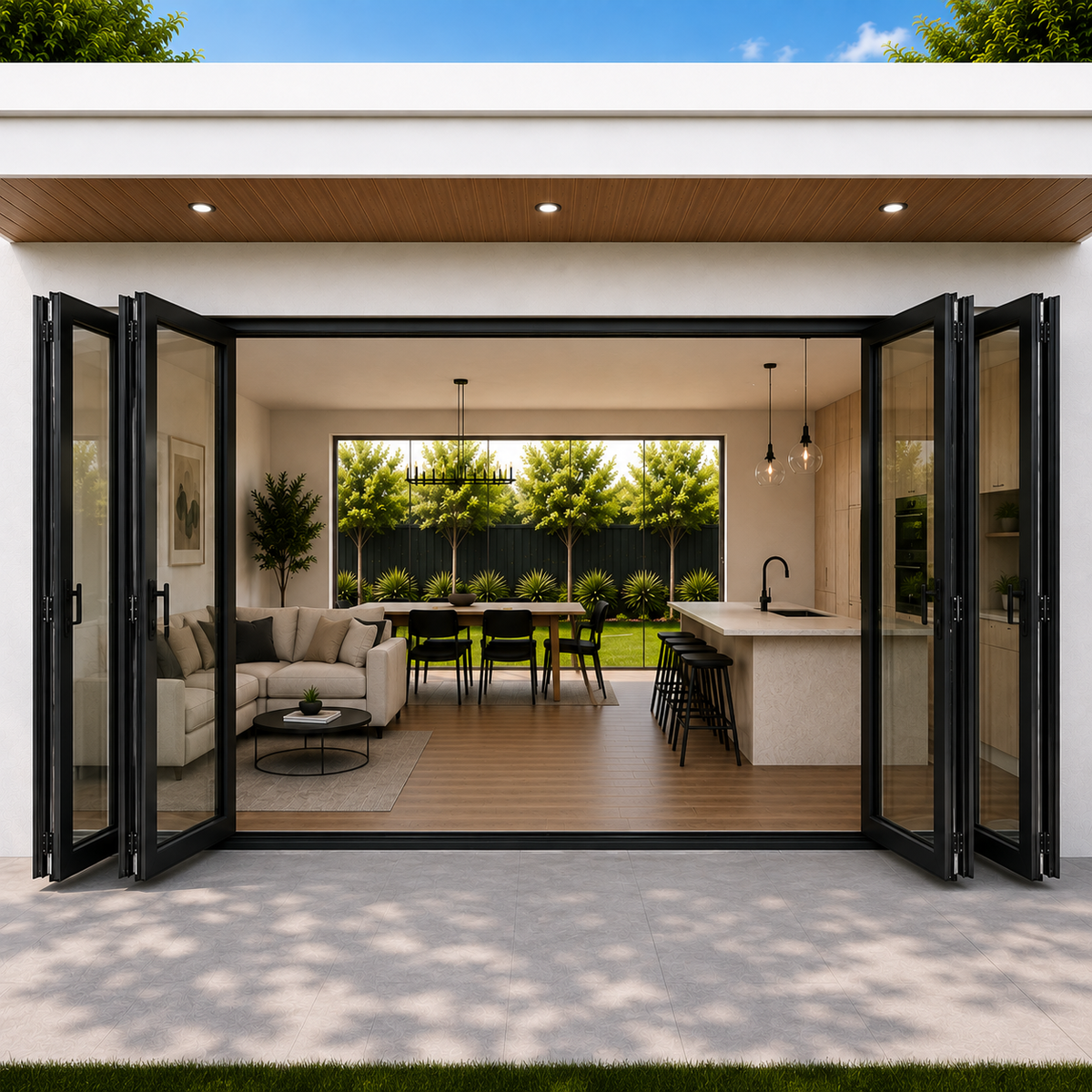

4 Panel – Center (2L / 2R)

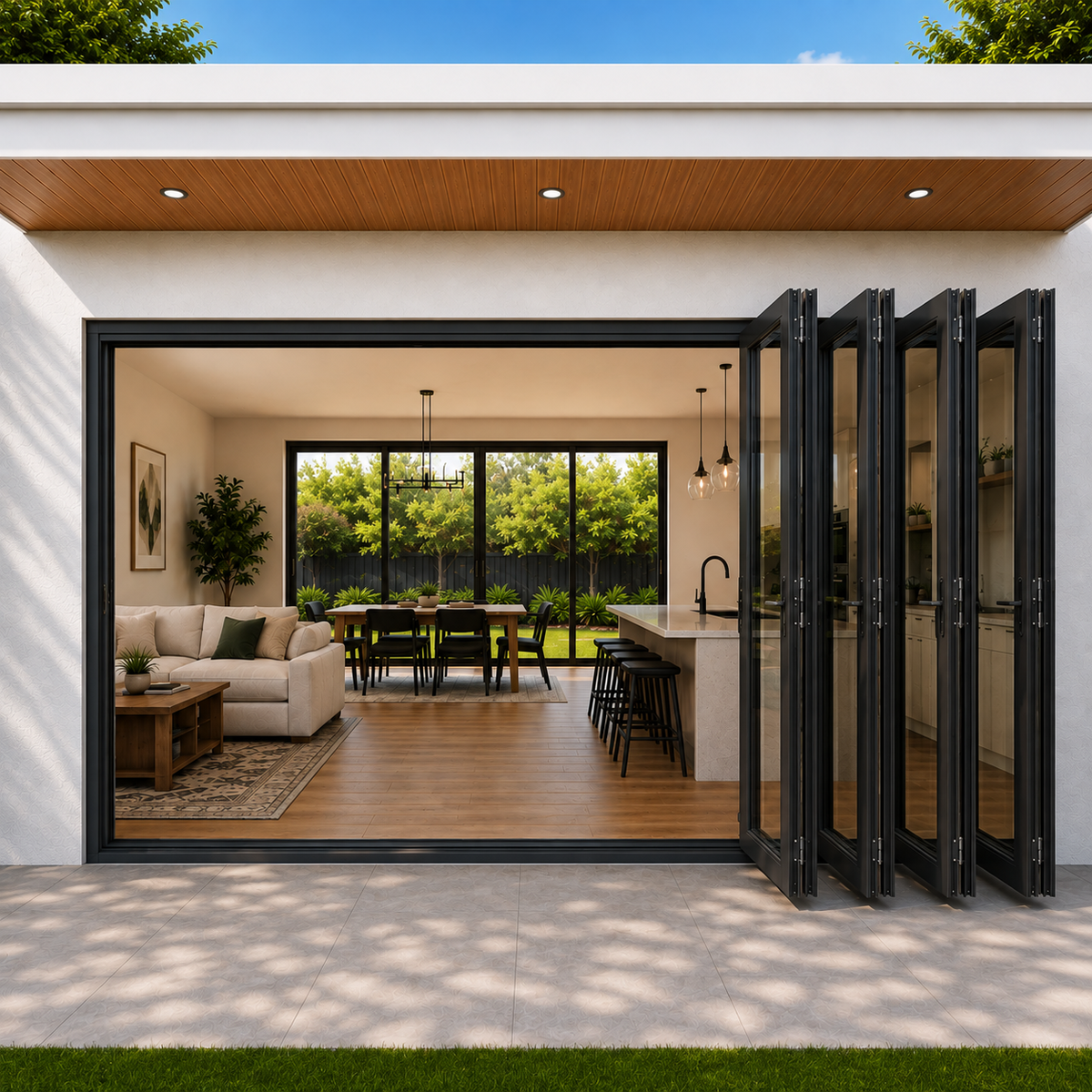

5 Panel – Right
Product size
144 in. x 80 in.
Required rough opening
144½ in. W × 80½ in. H
Jamb depth
3 in.

Bottom-supported track: Panels sit on the bottom track rather than hanging from the header.

Outside view: Left / right is viewed from the exterior. Match the opening option selected above.

Confirm fit with your installer. Measuring guide

Product overview

Open Your Space

Create a broad architectural opening with the ROZAN 144 in. x 80 in. (approximately 12 ft. x 6 ft. 8 in.) Black Aluminum Bifold Patio Door. At 12 feet wide, this system begins to transform an exterior wall into a substantial indoor-outdoor connection.

Flexible 4- or 5-panel configurations combine expansive glass with a clean black architectural frame.

Required Rough Opening: 144½ in. W × 80½ in. H
How to Measure Your Opening →

Product Highlights

Door Size: 144 in. W x 80 in. H
Approximate Size: 12 ft. W x 6 ft. 8 in. H
Panel Configuration: 4 or 5 Panels
Opening: Left, Right or 2L2R(Center)
Frame: Thermally Broken Aluminum
Frame Color: Black
Glass: Low-E Insulated Tempered Glass
Operation: Folding / Outswing
Opening Direction: Left or Right, determined when viewed from the exterior
Rough Opening: 144½ in. W × 80½ in. H
Also Available in: White
Specifications
Frame & finish
Frame Material Aluminum
Aluminum Alloy 6063-T5
Aluminum Thickness 2.0 mm
Frame Construction Thermally Broken
Finish Powder-Coated
Glass
Glass Type Low-E Insulated Tempered Glass
Glass Build 5mm Low-E + 27A Argon + 5mm Clear Tempered
Operation & hardware
Operation Folding
Swing Outswing
Jamb depth (frame)3 in.
Track Type Low Track
Track Height 0.8" (21 mm)
Track Depth 2.56" (65 mm)
Locking System Multipoint Locking System
Hardware Heavy-Duty Adjustable Hardware
Energy performance
U-Factor 0.26
SHGC 0.32
Visible Transmittance 0.35
Air Leakage 0.2
Condensation Resistance 51

Warranty & support

Frame: 10 years

Glass: 2 years

Hardware: 2 years

Coverage is subject to eligibility, exclusions and your order documentation.

View warranty terms

Need help choosing?

Discuss sizing, configuration, or delivery with ROZAN.

Get a product quote Call ROZAN · (949) 943-3330

Product Image Notice: Product images are for reference and may show placeholder components. Handle and hinge designs may vary from the images shown due to ongoing manufacturer product updates. Final hardware may differ in appearance while maintaining the specified product configuration.

View full details
