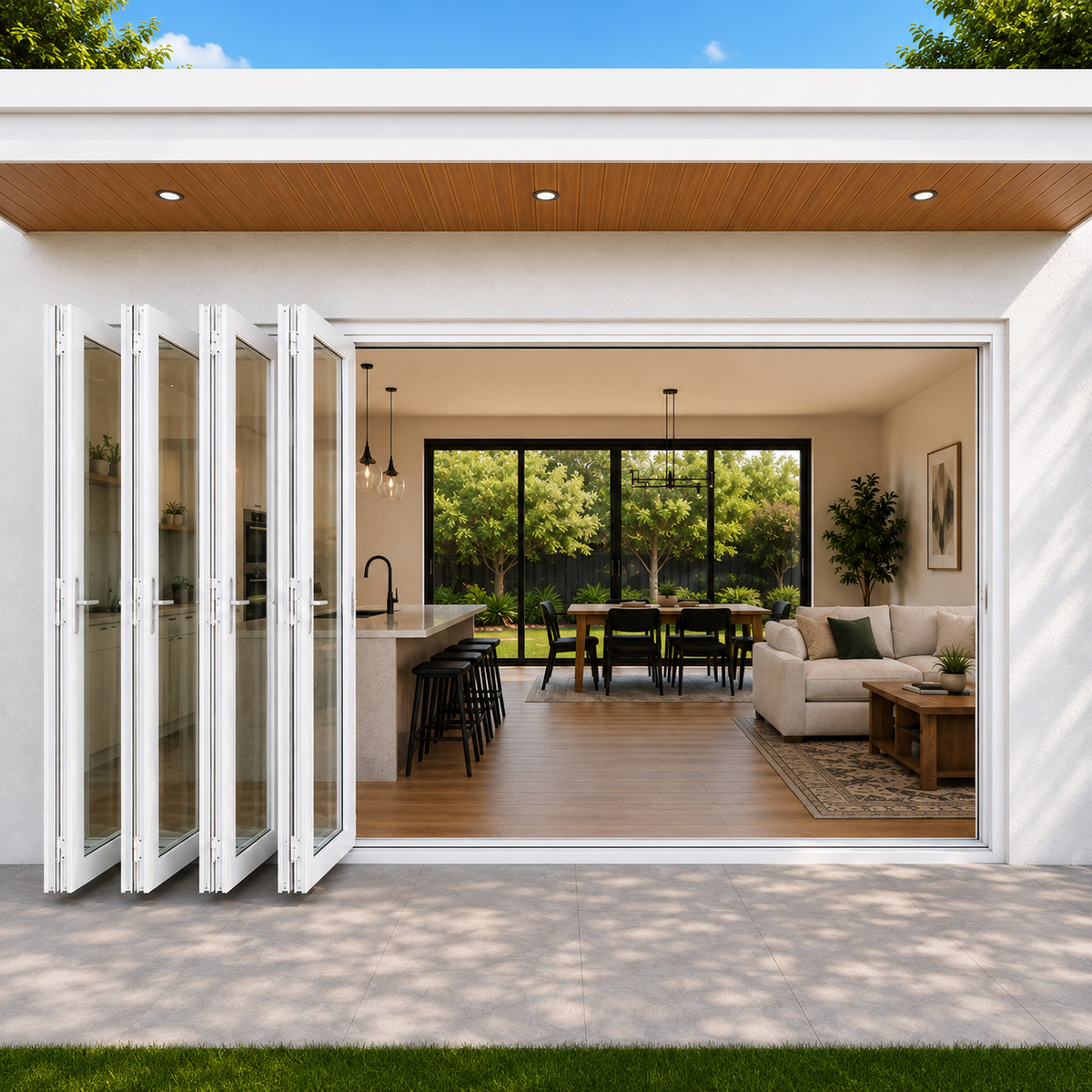

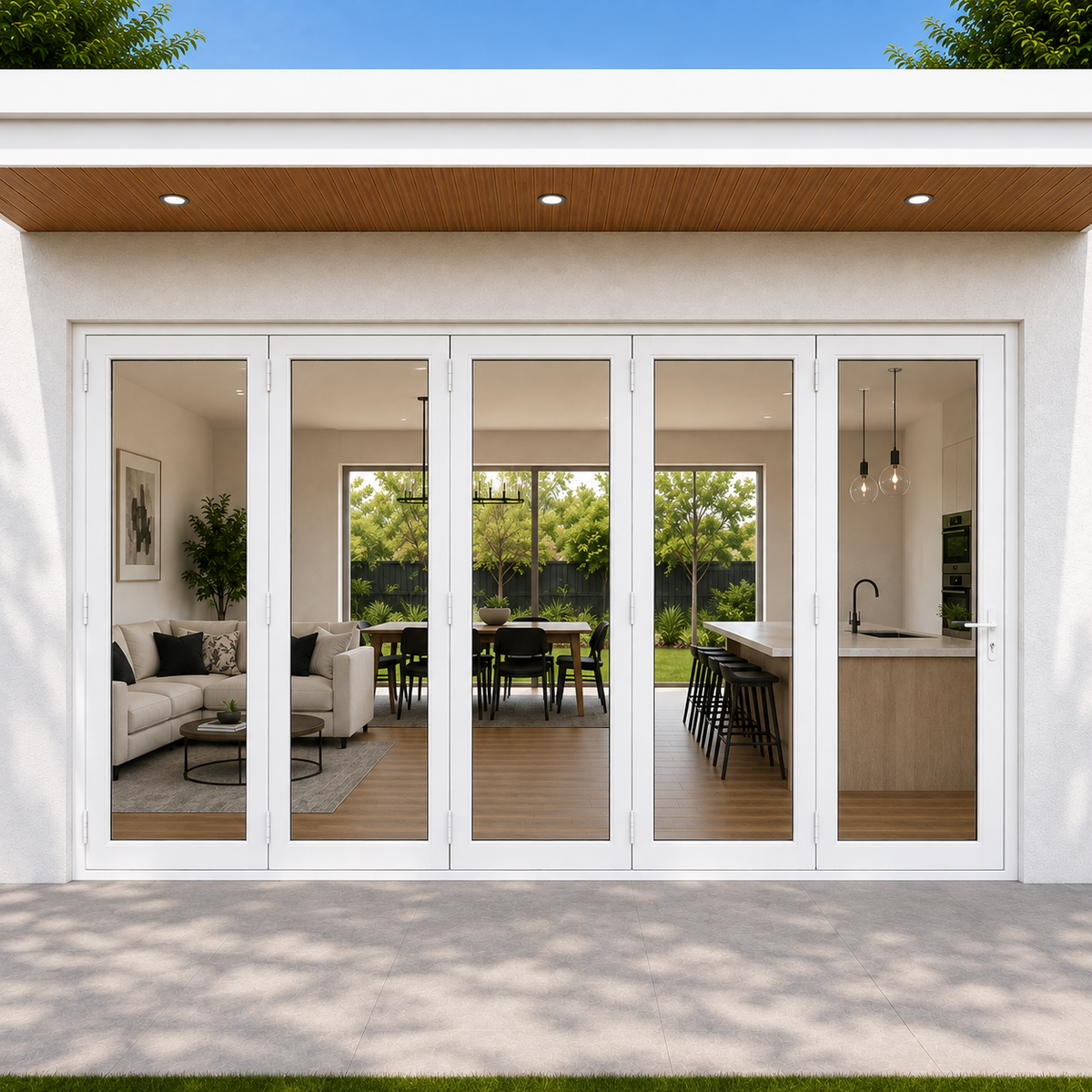

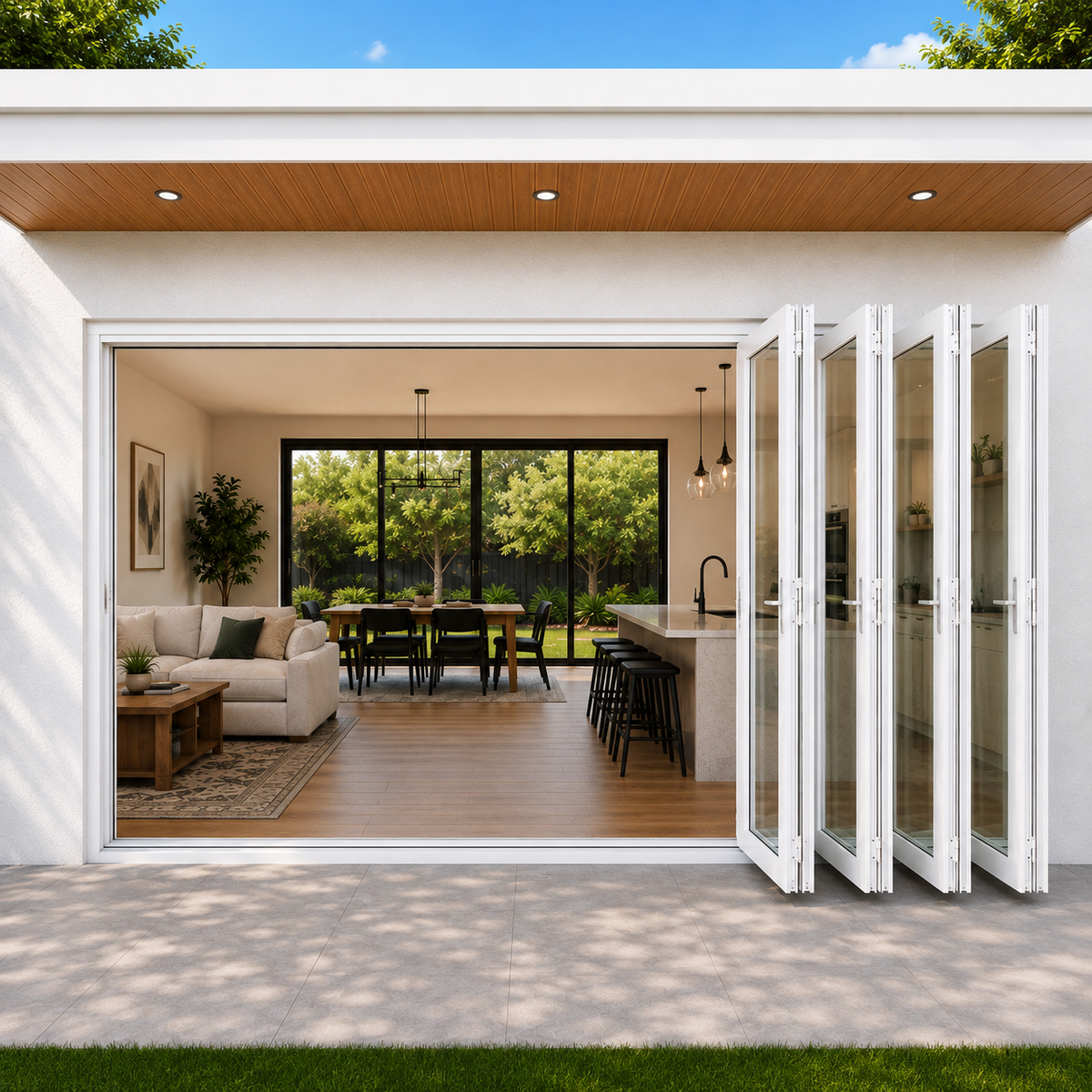

144 in. x 96 in. White Aluminum Bifold Patio Door
ROZAN
144 in. x 96 in. White Aluminum Bifold Patio Door
144 in. x 96 in. White Aluminum Bifold Patio Door
- Product size
- 144 in. x 96 in.
- Required rough opening
- 144½ in. W × 96½ in. H
- Jamb depth
- 3 in.
Bottom-supported track: Panels sit on the bottom track rather than hanging from the header.
Outside view: Left / right is viewed from the exterior. Match the opening option selected above.
Confirm fit with your installer. Measuring guide
Couldn't load pickup availability
Product overview
−
Open Your Space
Create an expansive, light-filled architectural opening with the ROZAN 144 in. x 96 in. (approximately 12 ft. x 8 ft.) White Aluminum Bifold Patio Door. Its 12-foot width and 8-foot height create a substantial glass area for patios and large living spaces.
The white aluminum frame keeps the visual profile clean and bright while flexible configurations adapt to the opening.
Required Rough Opening: 144½ in. W × 96½ in. H
How to Measure Your Opening →
Product Highlights
| Door Size: | 144 in. W x 96 in. H |
|---|---|
| Approximate Size: | 12 ft. W x 8 ft. H |
| Panel Configuration: | 4 or 5 Panels |

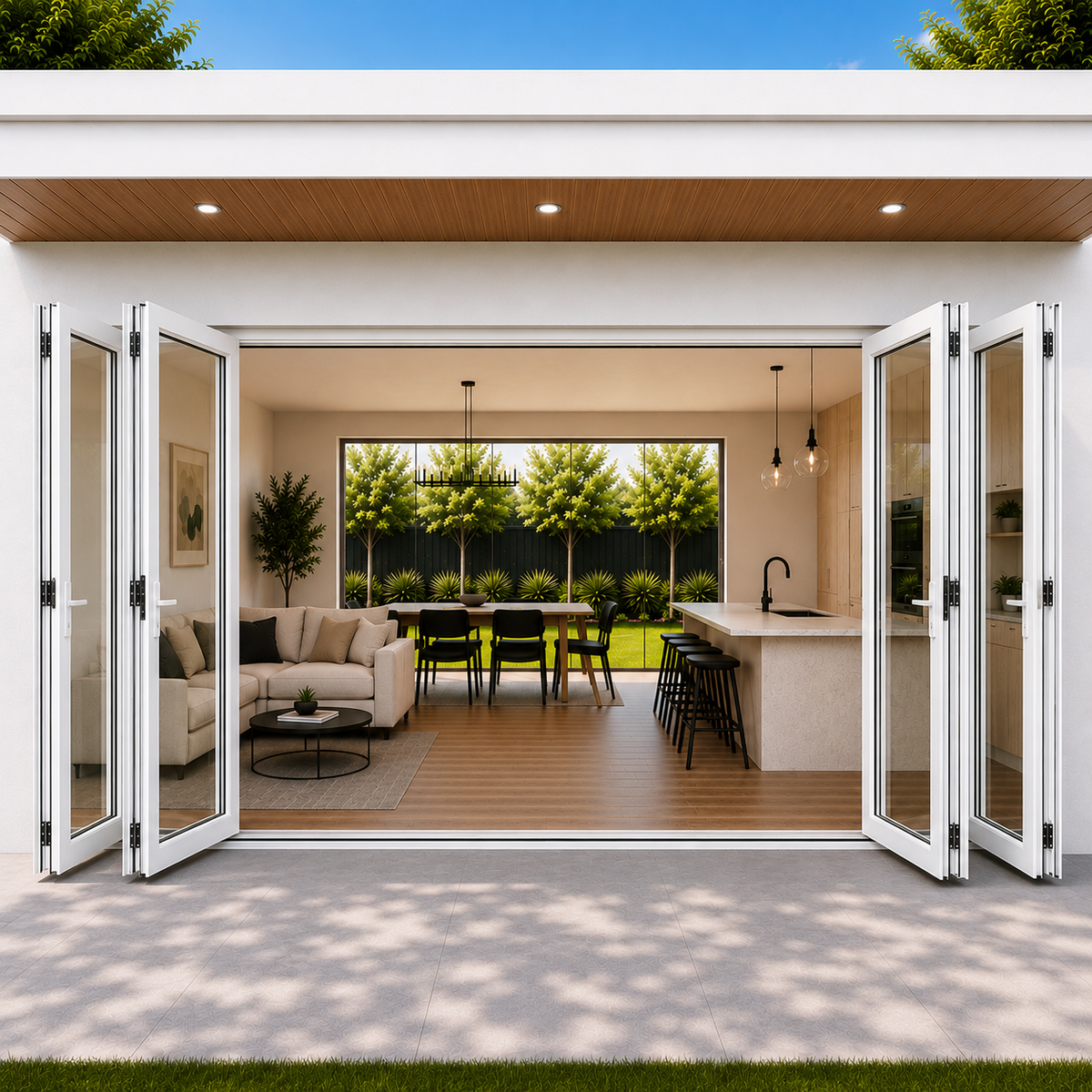

| Opening: | Left, Right or 2L2R(Center) |
| Frame: | Thermally Broken Aluminum |
| Frame Color: | White |
| Glass: | Low-E Insulated Tempered Glass |
| Operation: | Folding / Outswing |
| Opening Direction: | Left or Right, determined when viewed from the exterior |
| Rough Opening: | 144½ in. W × 96½ in. H |
| Also Available in: | Black |
Specifications
| Frame & finish | |
|---|---|
| Frame Material | Aluminum |
| Aluminum Alloy | 6063-T5 |
| Aluminum Thickness | 2.0 mm |
| Frame Construction | Thermally Broken |
| Finish | Powder-Coated |
| Glass | |
| Glass Type | Low-E Insulated Tempered Glass |
| Glass Build | 5mm Low-E + 27A Argon + 5mm Clear Tempered |
| Operation & hardware | |
| Operation | Folding |
| Swing | Outswing |
| Jamb depth (frame) | 3 in. |
| Track Type | Low Track |
| Track Height | 0.8" (21 mm) |
| Track Depth | 2.56" (65 mm) |
| Locking System | Multipoint Locking System |
| Hardware | Heavy-Duty Adjustable Hardware |
| Energy performance | |
| U-Factor | 0.26 |
| SHGC | 0.32 |
| Visible Transmittance | 0.35 |
| Air Leakage | 0.2 |
| Condensation Resistance | 51 |
Warranty & support
−
Frame: 10 years
Glass: 2 years
Hardware: 2 years
Coverage is subject to eligibility, exclusions and your order documentation.
