ROZAN

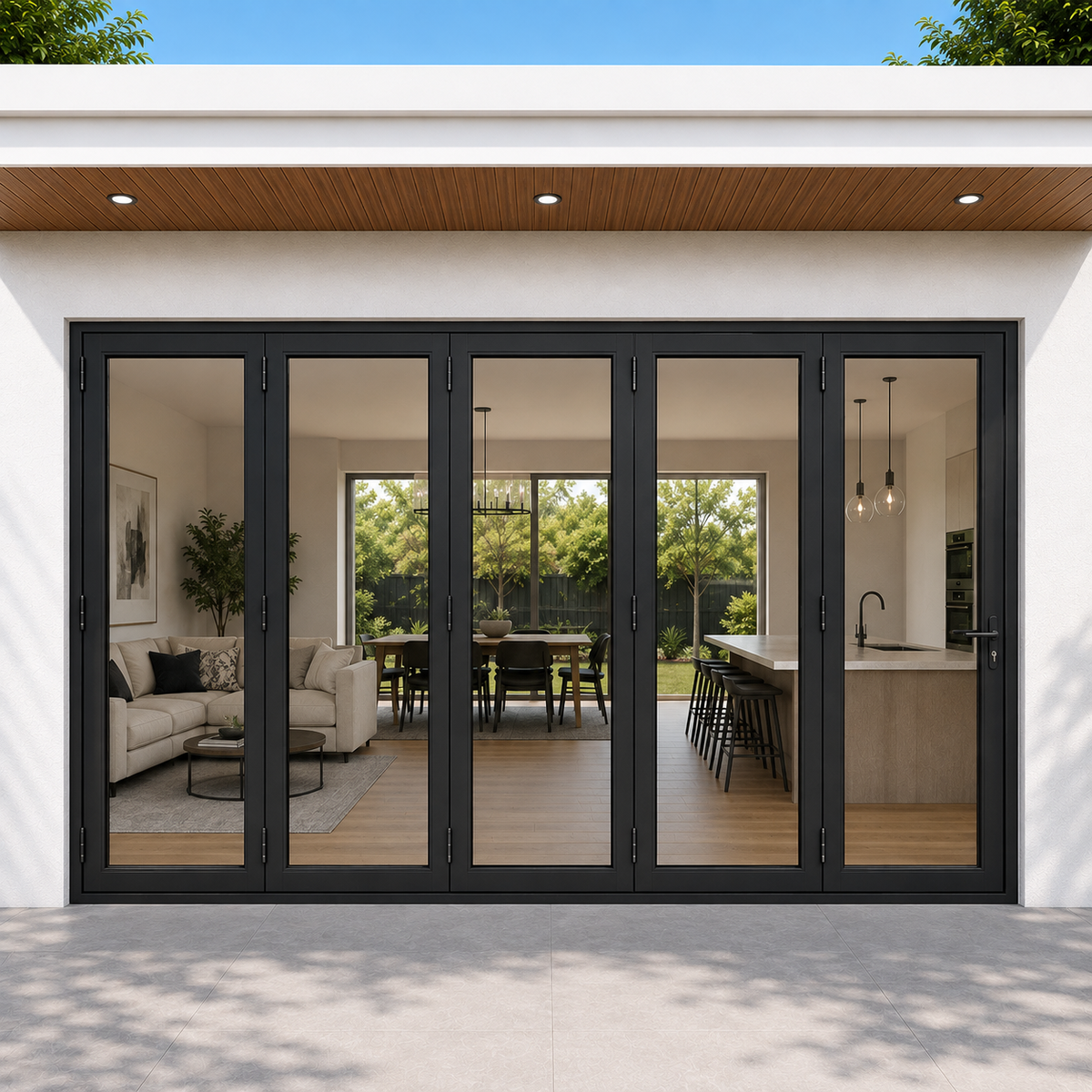

168 in. x 96 in. Black Aluminum Bifold Patio Door
168 in. x 96 in. Black Aluminum Bifold Patio Door
Couldn't load pickup availability
Get a Quote for Your Custom Requirements
Product Overview
Product Overview
Open Your Space
Create an expansive wall of glass with the ROZAN 168 in. x 96 in. (approximately 14 ft. x 8 ft.) Black Aluminum Bifold Patio Door. Its large proportions are designed for residential spaces centered around broad views, natural light, and indoor-outdoor living.
The black aluminum frame provides architectural definition while flexible 4- and 5-panel configurations accommodate the wide opening.
Product Highlights
- Door Size: 168 in. W x 96 in. H
- Approximate Size: 14 ft. W x 8 ft. H
- Panel Configuration: 4 or 5 Panels

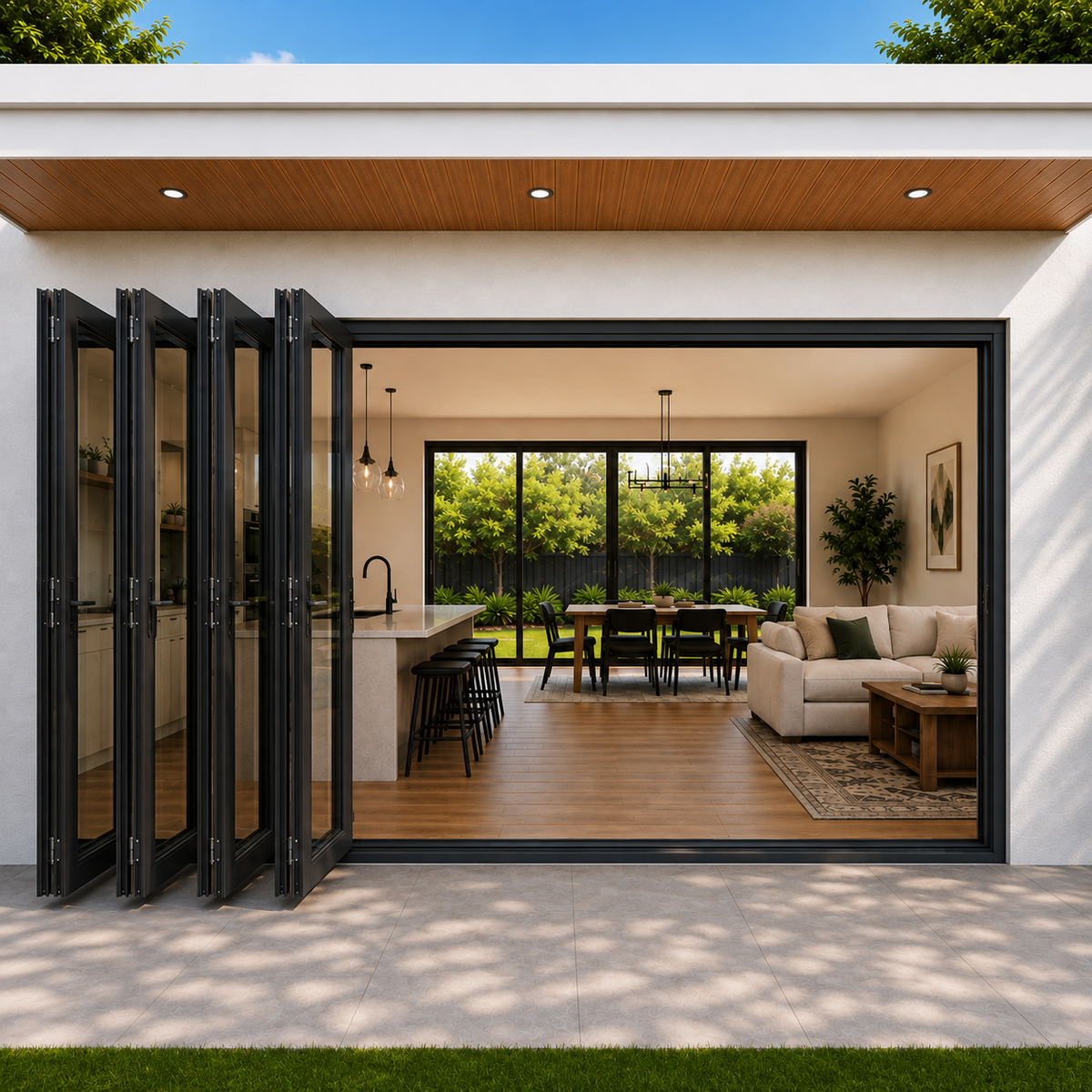

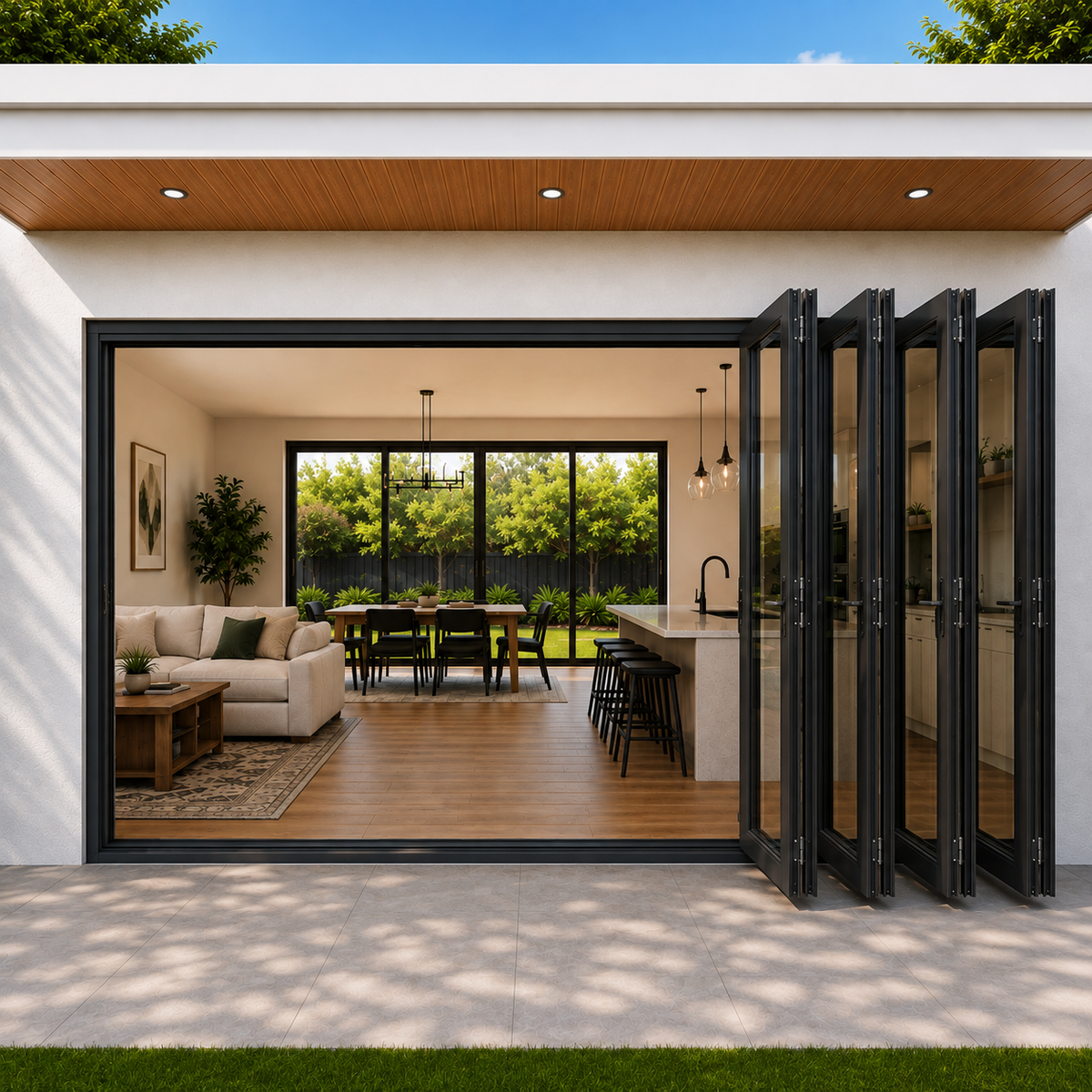

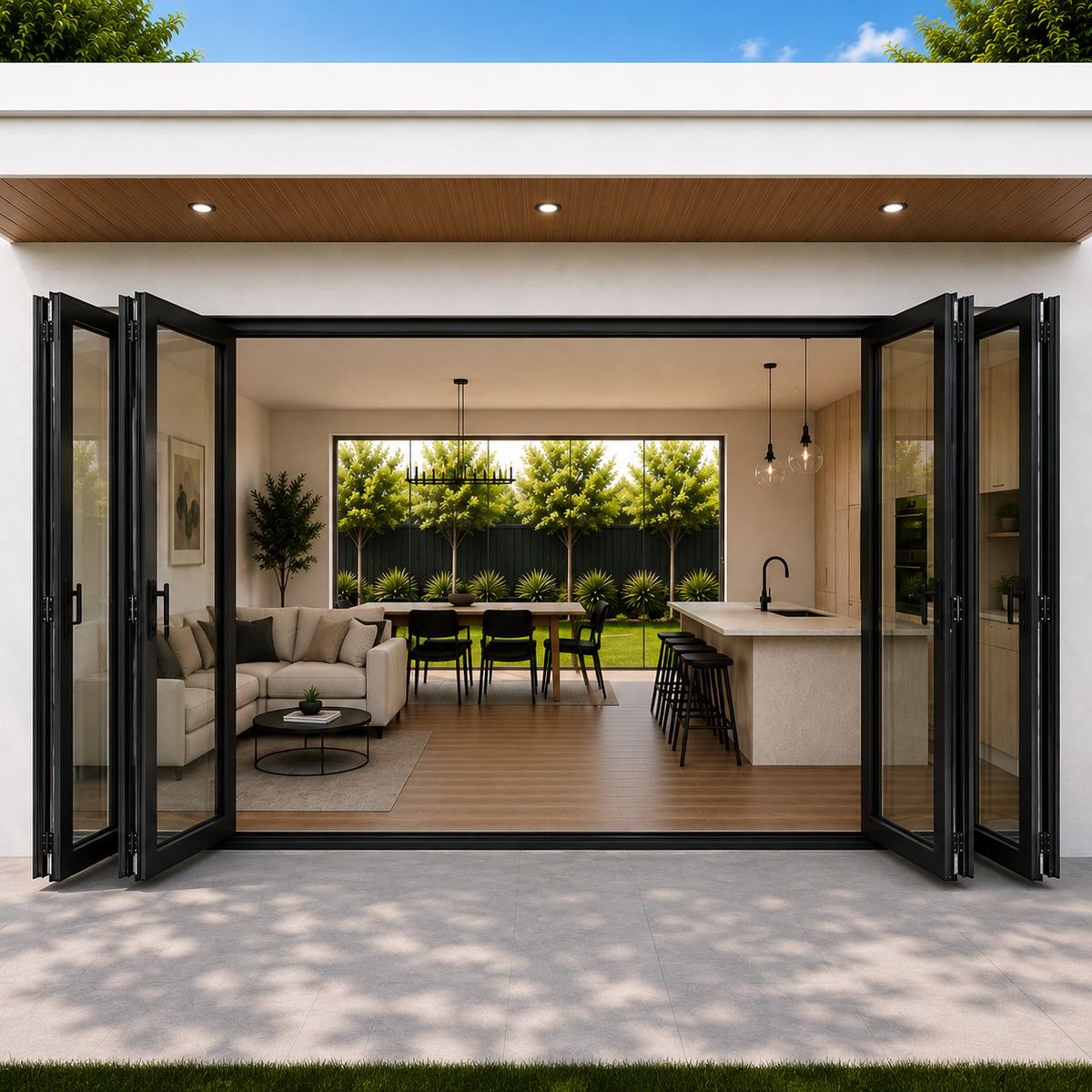

- Opening: Left, Right or 2L2R(Center)
- Frame: Thermally Broken Aluminum
- Frame Color: Black
- Glass: Low-E Insulated Tempered Glass
- Operation: Folding / Outswing
- Opening Direction: Left or Right, determined when viewed from the exterior
- Rough Opening: 168½ in. W × 96½ in. H
- Also Available in: White
Specifications
| Frame Material | Aluminum |
| Aluminum Alloy | 6063-T5 |
| Aluminum Thickness | 2.0 mm |
| Frame Construction | Thermally Broken |
| Finish | Powder-Coated |
| Glass Type | Low-E Insulated Tempered Glass |
| Glass Build | 5mm Low-E + 27A Argon + 5mm Clear Tempered |
| Operation | Folding |
| Swing | Outswing |
| Track Type | Low Track |
| Track Height | 0.8" (21 mm) |
| Track Depth | 2.56" (65 mm) |
| Locking System | Multipoint Locking System |
| Hardware | Heavy-Duty Adjustable Hardware |
| U-Factor | 0.26 |
| SHGC | 0.32 |
| Visible Transmittance | 0.35 |
| Air Leakage | 0.2 |
| Condensation Resistance | 51 |
Energy Performance
Energy Performance
Warranty
Warranty
Shipping Policy
Shipping Policy
At ROZAN FRAMES, we work to provide reliable and cost-effective delivery for our doors, windows, and related products throughout the United States. Read More...
Not Sure Which Size to Order?
Not Sure Which Size to Order?
Use our step-by-step tool to measure your opening and confirm the size you need before ordering.
- No Delays, No Surprises.
- Express Shipping Available
- Designed To Fit Perfectly
Product Image Notice: Product images are for reference and may show placeholder components. Handle and hinge designs may vary from the images shown due to ongoing manufacturer product updates. Final hardware may differ in appearance while maintaining the specified product configuration.
