ROZAN / DOORS & WINDOWS
192 in. x 80 in. Black Aluminum Sliding Patio Door
ROZAN
192 in. x 80 in. Black Aluminum Sliding Patio Door
192 in. x 80 in. Black Aluminum Sliding Patio Door
- Product size
- 192 in. x 80 in.
- Required rough opening
- 192½ in. W × 80½ in. H
- Jamb depth
- Confirm for this model
Confirm fit with your installer. Measuring guide
Couldn't load pickup availability
Product overview
−

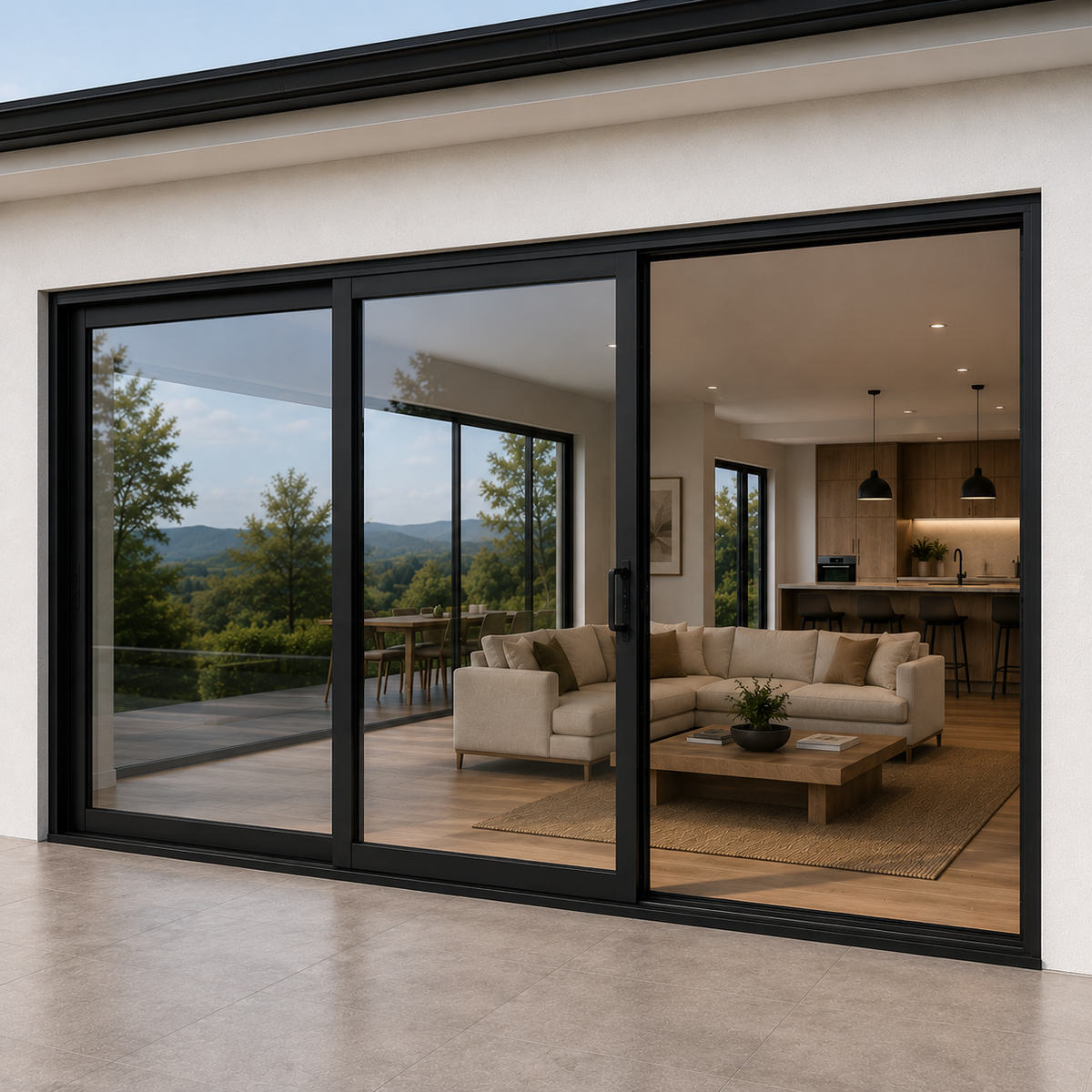

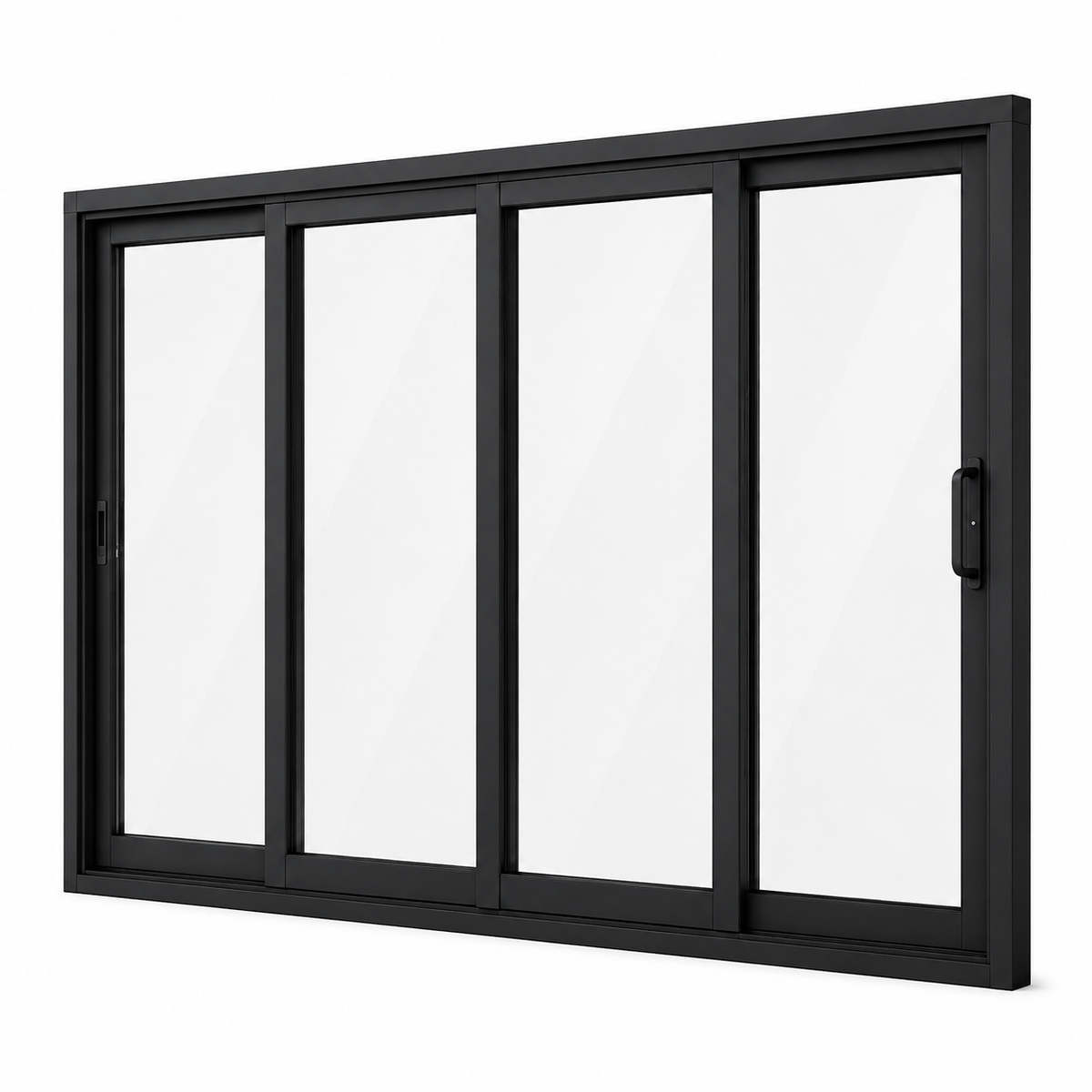

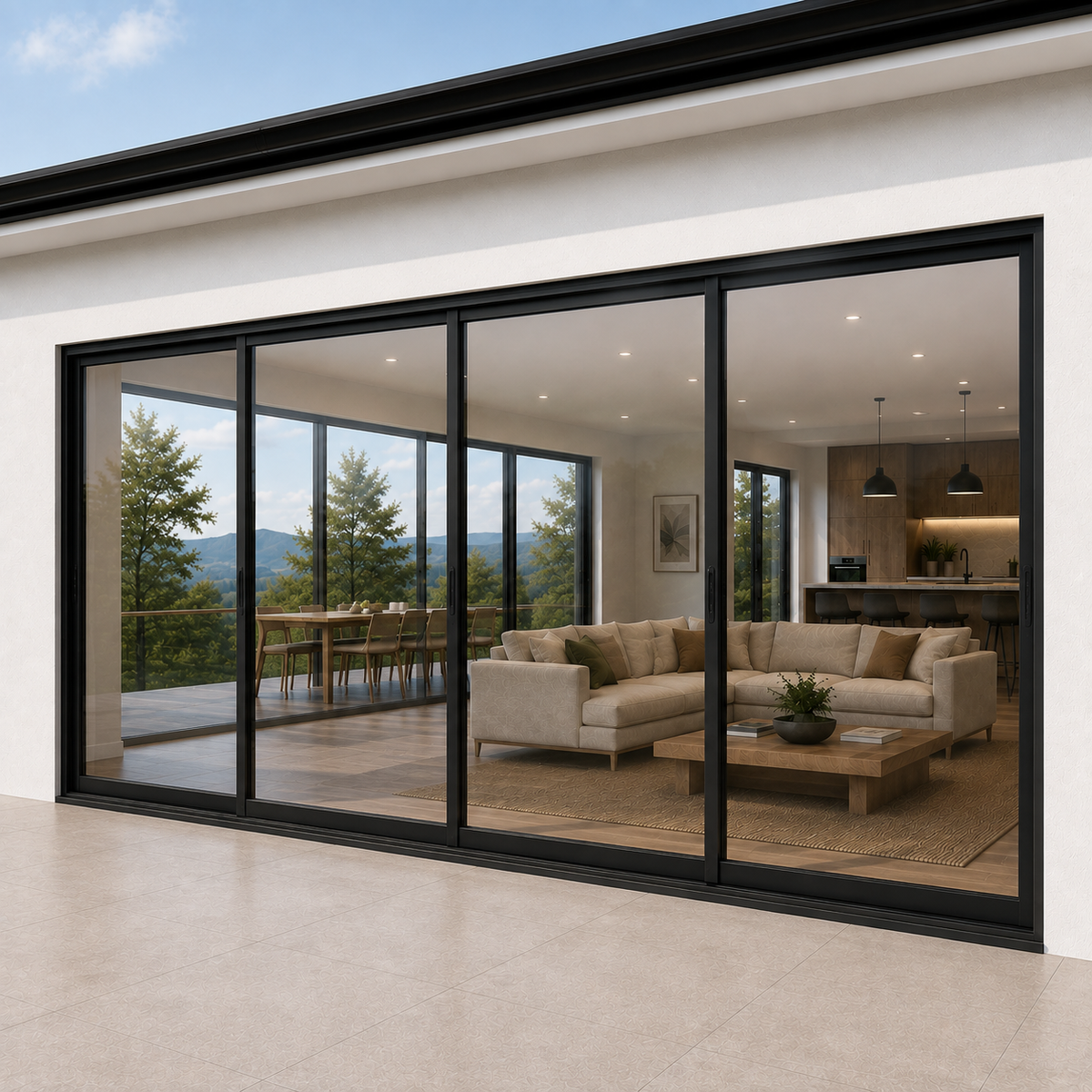

The ROZAN 192 in. x 80 in. Black Aluminum Sliding Patio Door is designed for expansive 16-foot-wide residential openings. Select a 3-panel configuration that opens left or right or a 4-panel center-opening configuration with two operable center panels and fixed outer panels. The broad glass area creates a strong visual connection between interior and exterior spaces.
Required Rough Opening: 192½ in. W × 80½ in. H
How to Measure Your Opening →
Product Highlights
| Door Size: | 192 in. W x 80 in. H |
|---|---|
| Door System: | Multi-Slide |
| Panel Options: | 3 or 4 Panels |

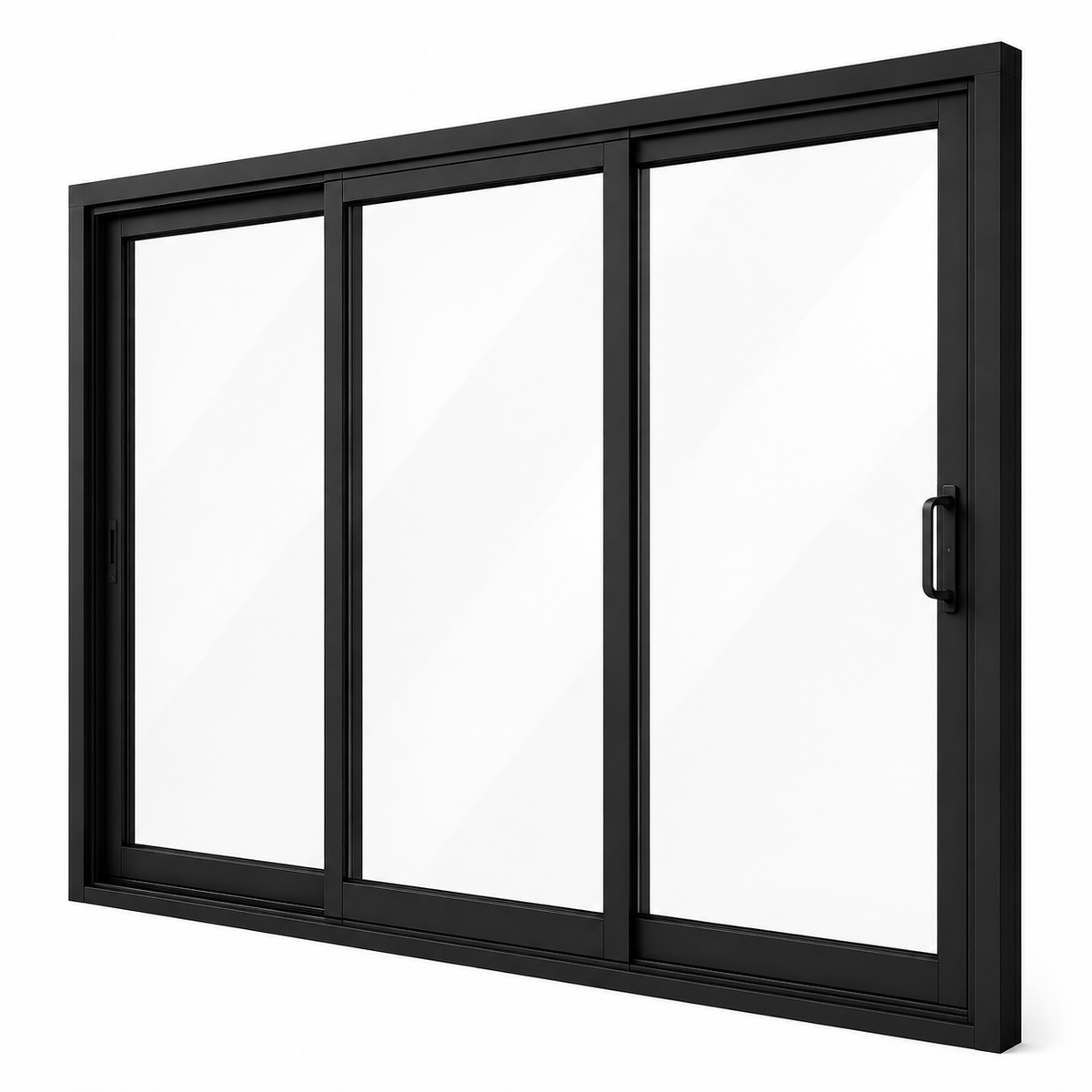

| 3-Panel Opening: | Left or Right |

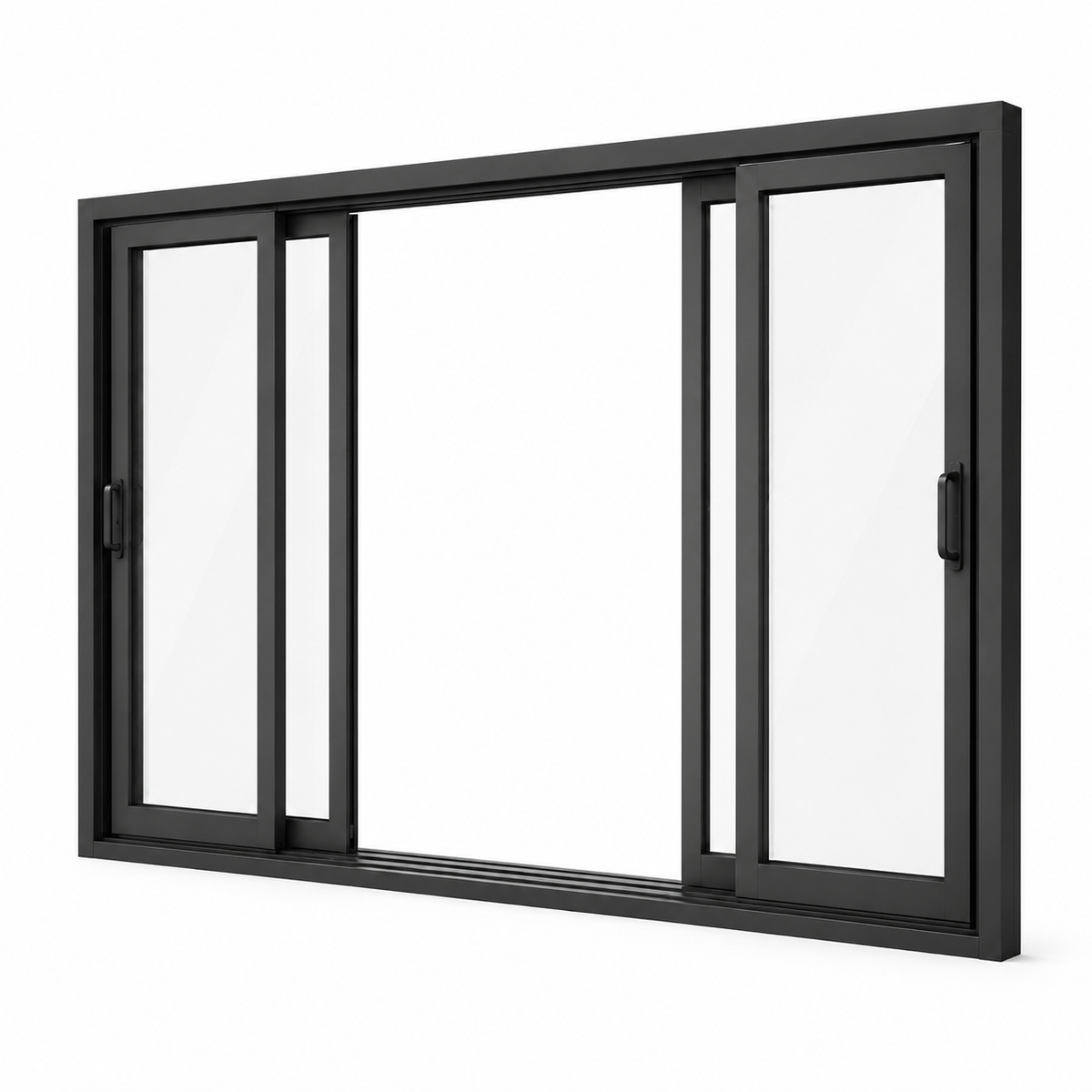

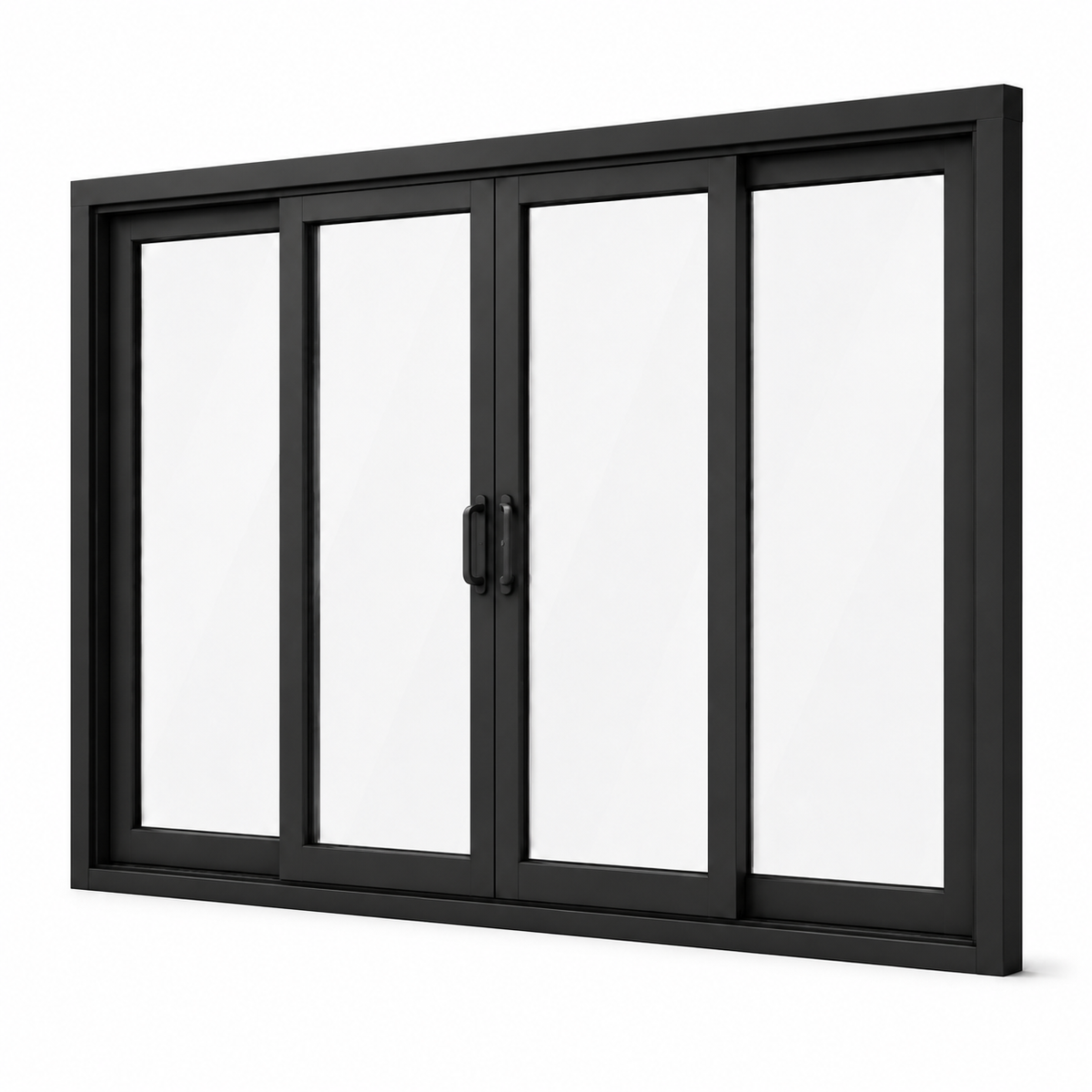

| 4-Panel Opening: | Center Opening |
| 4-Panel Operable Panels: | 2 Center Panels |
| 4-Panel Fixed Panels: | Left + Right Outer Panels |
| Frame Color: | Black |
| Approx. Product Weight: | 427–480 lb |
Specifications
| Frame & finish | |
|---|---|
| Frame Material | Aluminum |
| Aluminum Alloy | 6063-T5 |
| Aluminum Thickness | 2.0 mm |
| Frame Construction | Thermal Break |
| Glass | |
| Glass Type | Low-E Double Clear Tempered Glass |
| Glass Build | 5mm + 20A + 5mm |
| Operation & hardware | |
| Operation | Sliding |
| Track Type | High Waterproof Track |
Warranty & support
−
Frame: 10 years
Glass: 2 years
Hardware: 2 years
Coverage is subject to eligibility, exclusions and your order documentation.
View warranty termsNeed help choosing?
Discuss sizing, configuration, or delivery with ROZAN.
Get a product quote Call ROZAN · (949) 943-3330Product Image Notice: Product images are for reference and may show placeholder components. Handle and hinge designs may vary from the images shown due to ongoing manufacturer product updates. Final hardware may differ in appearance while maintaining the specified product configuration.
