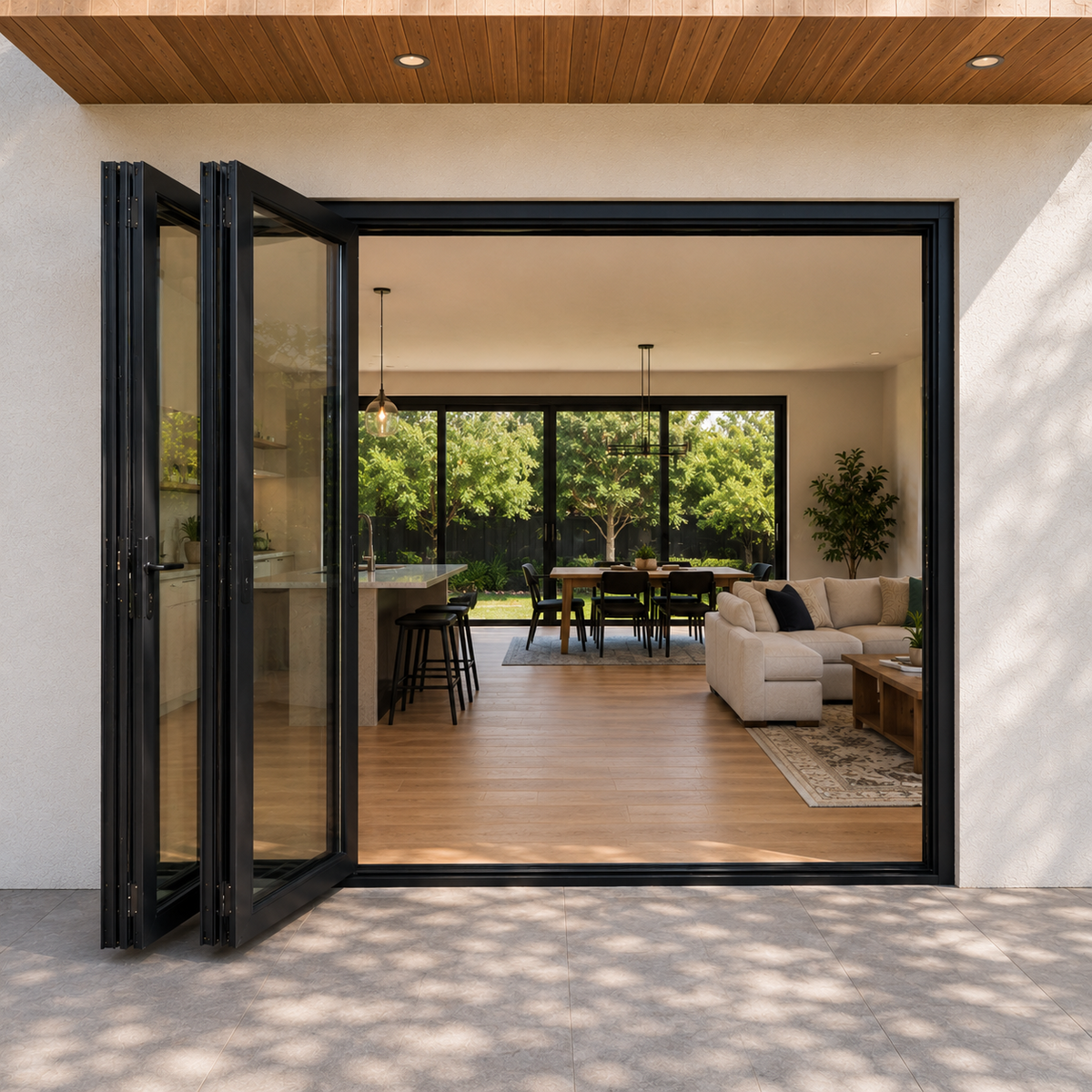

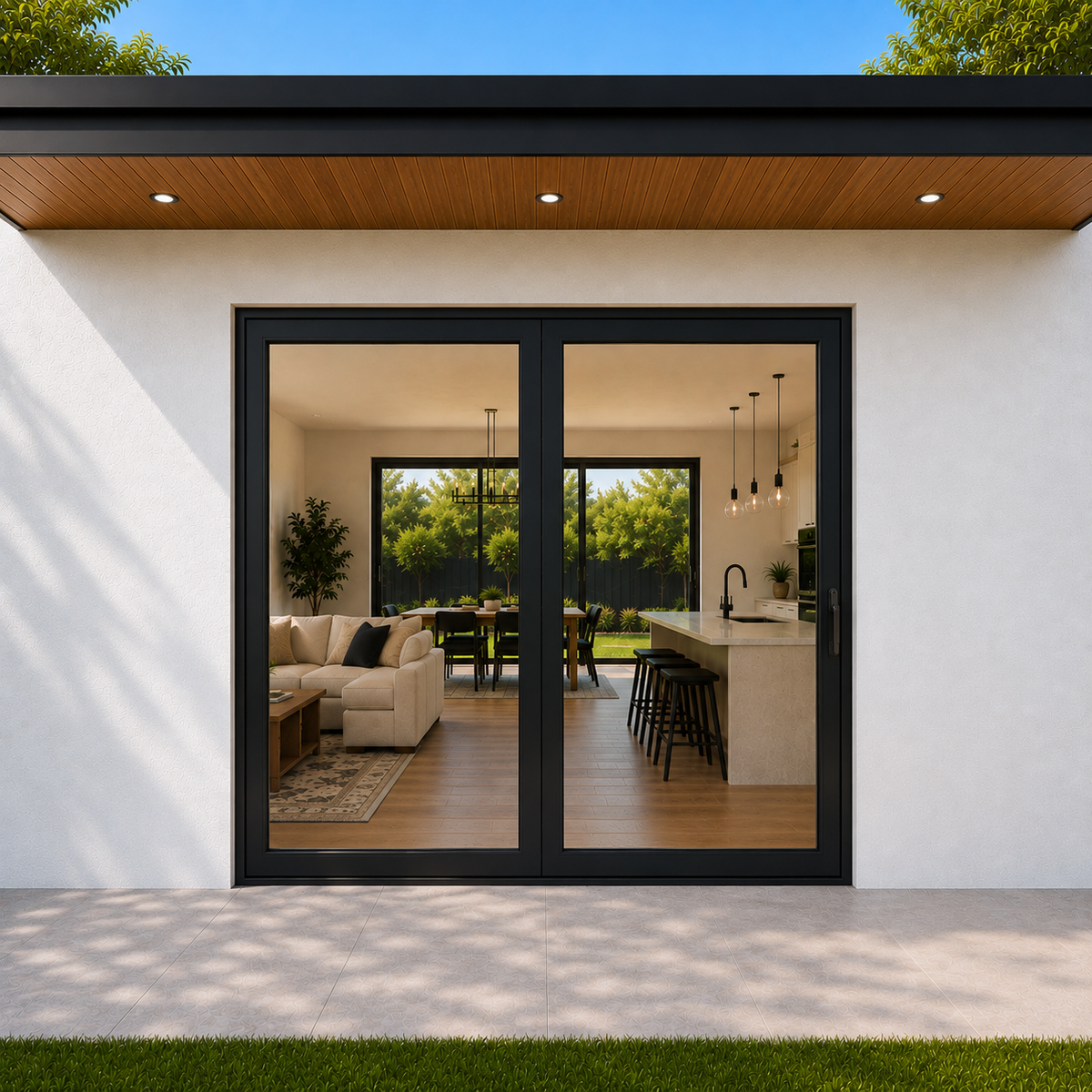

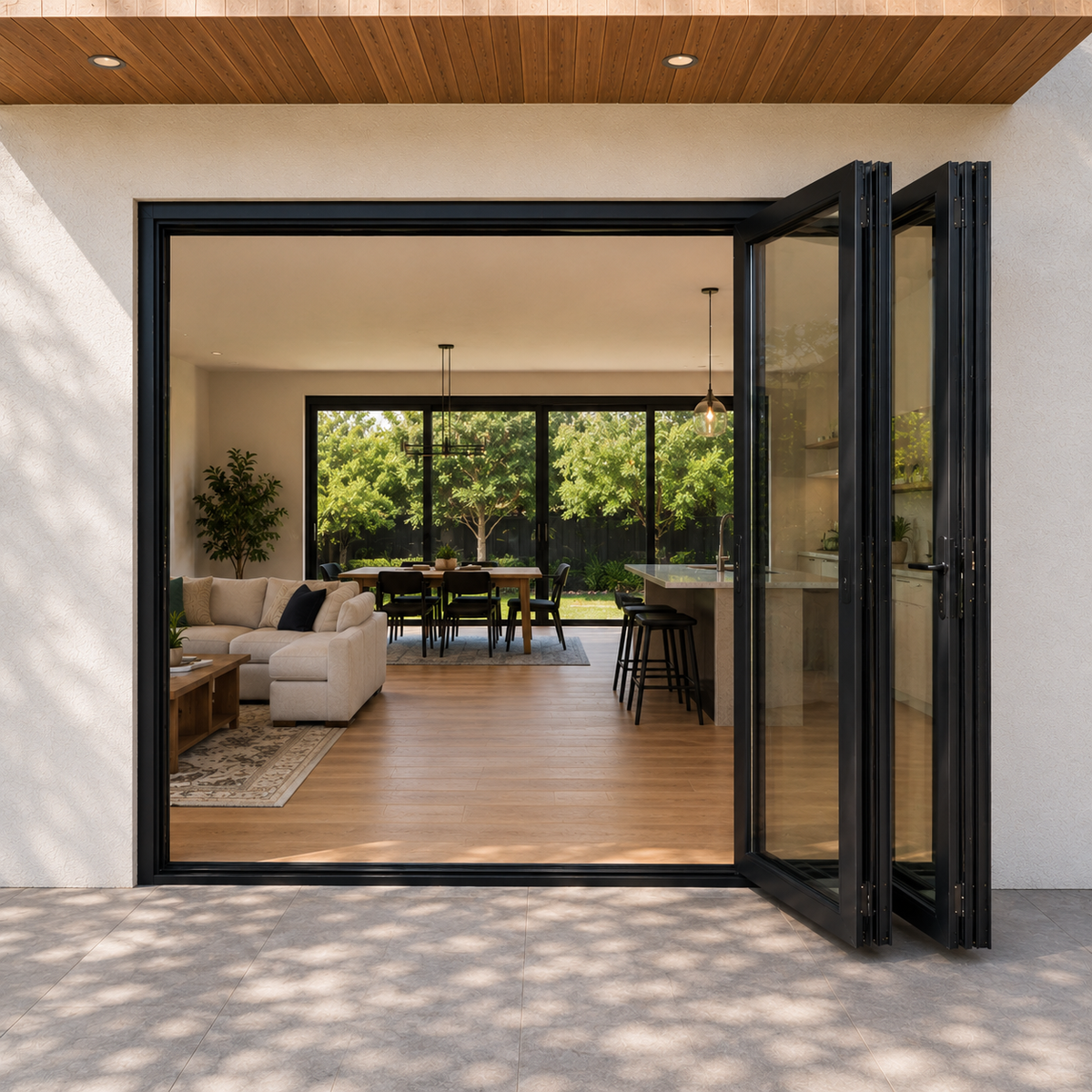

60 in. x 96 in. Black Aluminum Bifold Patio Door
ROZAN
60 in. x 96 in. Black Aluminum Bifold Patio Door
60 in. x 96 in. Black Aluminum Bifold Patio Door
- Product size
- 60 in. x 96 in.
- Required rough opening
- 60½ in. W × 96½ in. H
- Jamb depth
- 3 in.
Bottom-supported track: Panels sit on the bottom track rather than hanging from the header.
Outside view: Left / right is viewed from the exterior. Match the opening option selected above.
Confirm fit with your installer. Measuring guide
Couldn't load pickup availability
Product overview
−
Open Your Space
Create a taller, light-filled opening with the ROZAN 60 in. x 96 in. (approximately 5 ft. x 8 ft.) Black Aluminum Bifold Patio Door. The 8-foot height provides an expansive glass presence while the black aluminum frame creates strong, clean architectural lines.
The compact width combined with taller glass makes this size well suited to residential spaces where height and natural light are priorities.
Required Rough Opening: 60½ in. W × 96½ in. H
How to Measure Your Opening →
Product Highlights
| Door Size: | 60 in. W x 96 in. H |
|---|---|
| Approximate Size: | 5 ft. W x 8 ft. H |
| Panel Configuration: | 2 Panel |
| Opening: | Left or Right |
| Frame: | Thermally Broken Aluminum |
| Frame Color: | Black |
| Glass: | Low-E Insulated Tempered Glass |
| Operation: | Folding / Outswing |
| Opening Direction: | Left or Right, determined when viewed from the exterior |
| Rough Opening: | 60½ in. W × 96½ in. H |
| Also Available in: | White |
Specifications
| Frame & finish | |
|---|---|
| Frame Material | Aluminum |
| Aluminum Alloy | 6063-T5 |
| Aluminum Thickness | 2.0 mm |
| Frame Construction | Thermally Broken |
| Finish | Powder-Coated |
| Glass | |
| Glass Type | Low-E Insulated Tempered Glass |
| Glass Build | 5mm Low-E + 27A Argon + 5mm Clear Tempered |
| Operation & hardware | |
| Operation | Folding |
| Swing | Outswing |
| Jamb depth (frame) | 3 in. |
| Track Type | Low Track |
| Track Height | 0.8" (21 mm) |
| Track Depth | 2.56" (65 mm) |
| Locking System | Multipoint Locking System |
| Hardware | Heavy-Duty Adjustable Hardware |
| Energy performance | |
| U-Factor | 0.26 |
| SHGC | 0.32 |
| Visible Transmittance | 0.35 |
| Air Leakage | 0.2 |
| Condensation Resistance | 51 |
Warranty & support
−
Frame: 10 years
Glass: 2 years
Hardware: 2 years
Coverage is subject to eligibility, exclusions and your order documentation.
View warranty termsNeed help choosing?
Discuss sizing, configuration, or delivery with ROZAN.
Get a product quote Call ROZAN · (949) 943-3330Product Image Notice: Product images are for reference and may show placeholder components. Handle and hinge designs may vary from the images shown due to ongoing manufacturer product updates. Final hardware may differ in appearance while maintaining the specified product configuration.
